Details

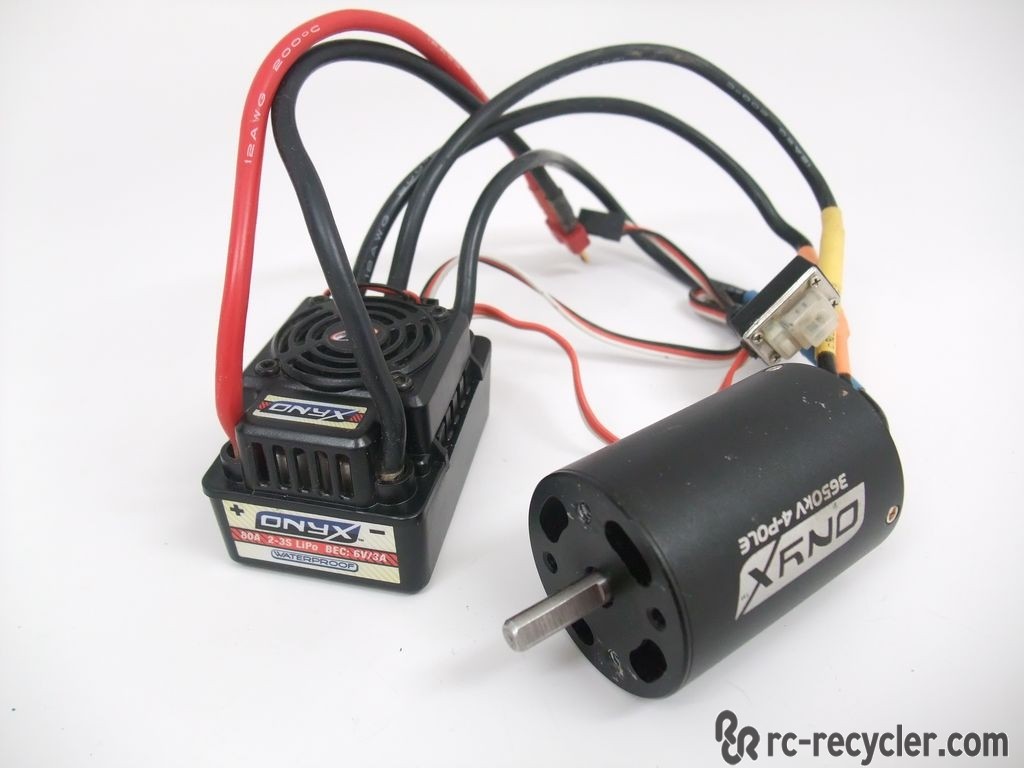

This is a Duratrax Onyx 80A waterproof ESC & 3650kV brushless motor combo, part number DTXC3172. The motor leads are terminated with matching bullet connectors and the battery lead is terminated with a deans plug. This supports 2-3s LiPO batteries.
These are used and in very good condition with minor wear from use. These have been benched tested to be in good working condition and the fan works normally.
Manufacturer's Description:
Specification
ESC::
Cont./Burst Current: 80A/520A
Suitable Motor: Sensorless, brushless
Motor Limitation: 2S LiPo 6000kV
3S LiPo 4000kV
Resistance: 0.0007 ohms
Input: 6-9 NiMH/NiCd cells
2-3S LiPo cells
BEC: 6V/3A Linear
Dimensions: 1.5 x 1.5 x 2.3" (38.4 x 38.4 x 59.3mm)
Weight: 3.9oz (110g)
Connectors: 4mm bullet
Battery Connection: Deans Ultra Male
Motor::
Dimensions: 1.4 x 2.1" (36 x 53mm)
Weight: 6.5oz (186g)
Connectors: 4mm bullet
Shaft Diameter: 5mm
This is the DuraTrax Onyx 80A ESC and 3650kV 4-Pole Brushless Motor System with a Deans Connector for 1/10 scale short course trucks.
Features:
Four pole brushless motor
Waterproof ESC for protection from the elements
Fully programmable ESC with optional Onyx Programming Card (not included, order DTXM1352)
Ideal upgrade from the stock ESC and motor supplied with 1/10 scale RTR short course trucks
Preinstalled bullet connectors-no soldering required
